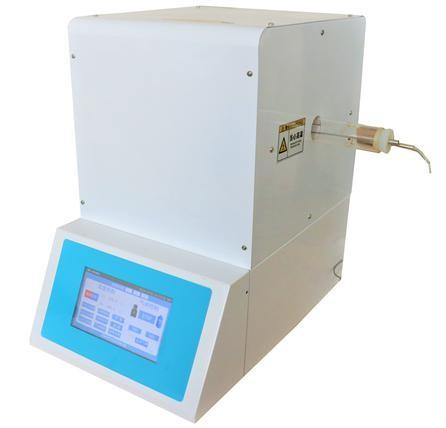

Touch Screen Automatic Switching Gas Carbon Black Content Tester
Summary:
New intelligent touchscreen upgrade product automatic switching gas
With the alarm function at the end of the experiment, the alarm time can be set and the ventilation time of nitrogen and oxygen can be set. The instrument can automatically switch the gas without manual waiting for the switch
Application: suitable for the determination of carbon black in polyethylene, polypropylene and polybutene plastics.
Technical features:
1. 7 inches wide touch screen control, current temperature, setting temperature, decomposition state, pyrolysis state, constant temperature state, air pipe calcining, operation time, oxygen filling state, nitrogen filling state and other information integration display, operation is very simple.
2. Heating furnace body and control system integration design, convenient for user's instrument management.
3. The pyrolysis, decomposition and air pipe calcining temperature program section is automatically stored. The user only needs to start the operation with a button, which saves tedious repeated temperature setting. Fully automatic operation control in the real sense.
4. Nitrogen and oxygen gas instrument automatic switching, equipped with high-precision floating ball gas flowmeter.
5. Rapid cooling device is selected to realize rapid cooling of temperature and improve the utilization efficiency of the machine.
6. Nano blanket new insulation material, achieve excellent thermal insulation effect, high uniformity of furnace temperature.
7. Conform but not limited to the following criteria: GB/T 2951.8,GB/T 13021,JTG E50 T1165,IEC 60811-4-1,ISO 6964.
Technical parameters:
| Temperature | Room Temperature To 1000 ℃ |
| Furnace Tube Size | Ф 30 Mm * 450 Mm |
| Heating Element | Resistance Wire |
| Display Mode | 7 Inches Wide Touch Screen |
| Temperature Control | Pid Programmable Control, Automatic Memory Temperature Setting Section |
| Power Supply | Ac220V/50Hz/60Hz |
| Rated Power | 1.5Kw |
Configuration list:
| Main Engine Of Carbon Black Content Measuring Instrument | 1 |
| Burning Boat Tray | 1 |
| Power Cord | 1 |
| Burning Boats | 10 |
| CD (Operations Video) | 1 |
| Oxygen Airway, Nitrogen Airway And Exhaust Airway | Each 5m |
| Operation Manual | 1 |
| Spoon And Medicine Tweezers. | Each One |
| Custom Pressure Reducing Valve Joint And Quick Joint | 2 |
| Fused Glass Fuses | 5 |

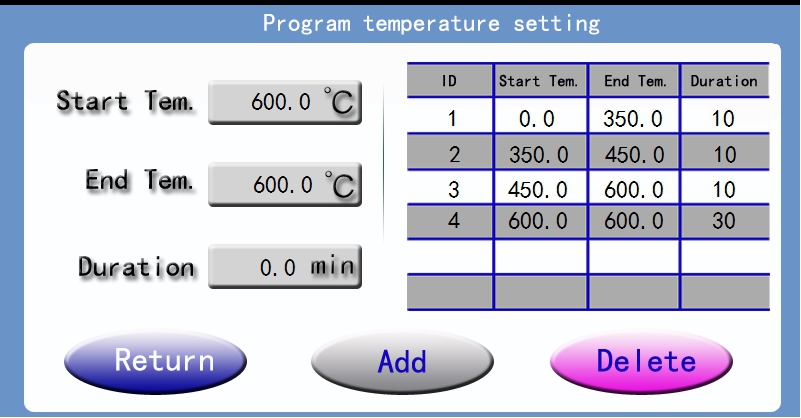

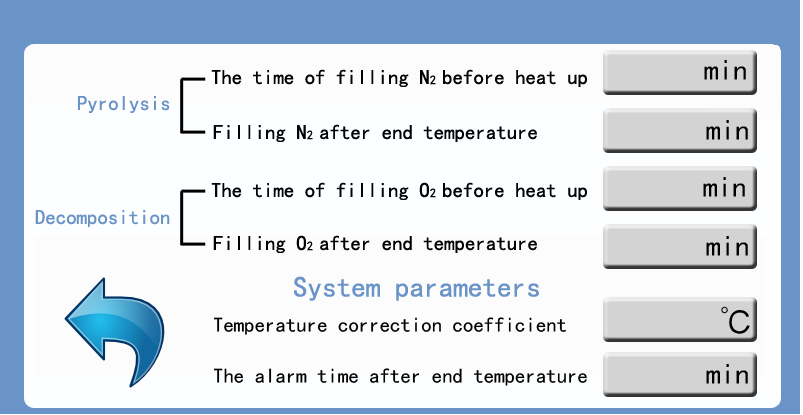

Touch screen display:
Optional accessories:

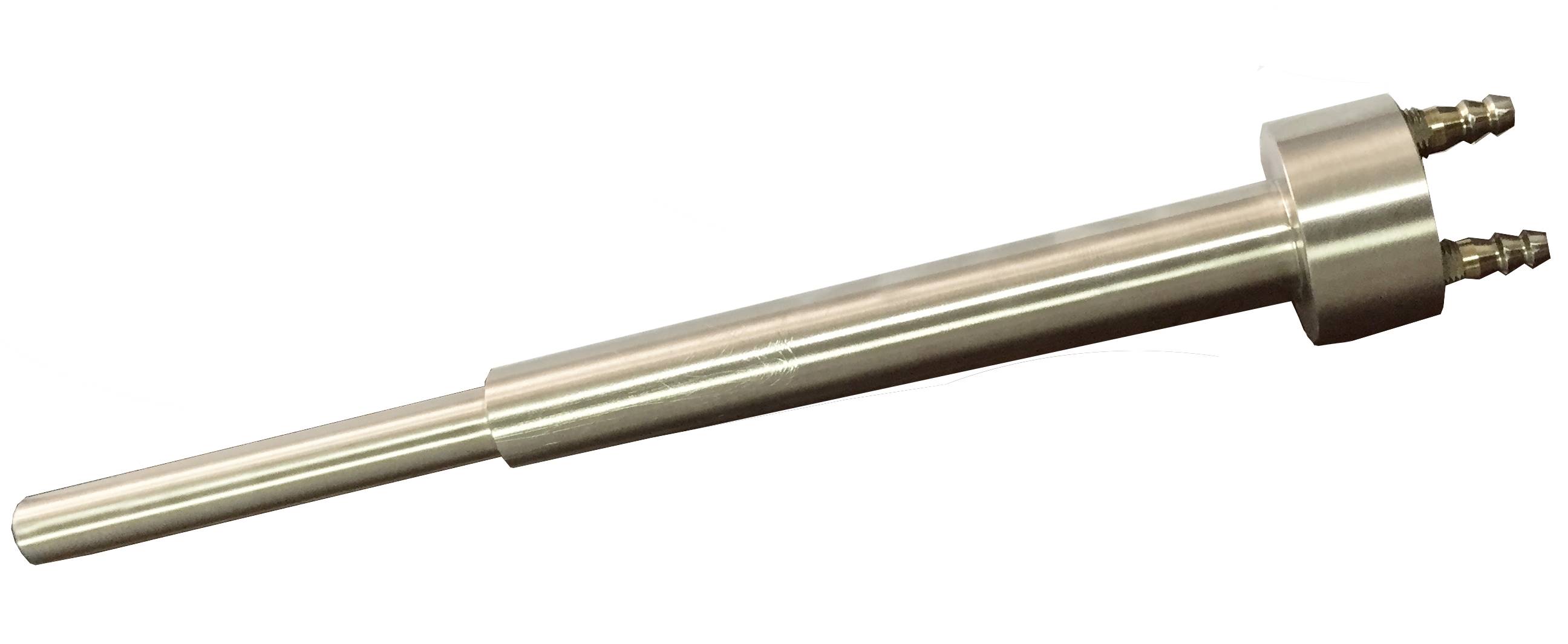

Rapid cooling device
