Dn630mm Hydrostatic Test Plugs Ss Or Carbon Steel End Cover Service

  • 1
  • 2

Brand Name : JINHAIHU

Model Number : XGY

Certification : ISO9001

Place of Origin : BEIJING, CHINA

MOQ : 1 set

Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A

Supply Ability : 1000 sets per month

Delivery Time : 7~10 work days

Packaging Details : Standard export wooden cases

Product name : DN630mm SS or carbon steel end cover service for hydrostatic equipment

Material : 304# SS or carbon steel

Technics : Precision Casting

Type : A

Model : DN 630mm

Exterior size(mm*mm) : φ900*450mm

Weight : 300KG

Sealing mode : O-type silicone rubber ring

Contact Now

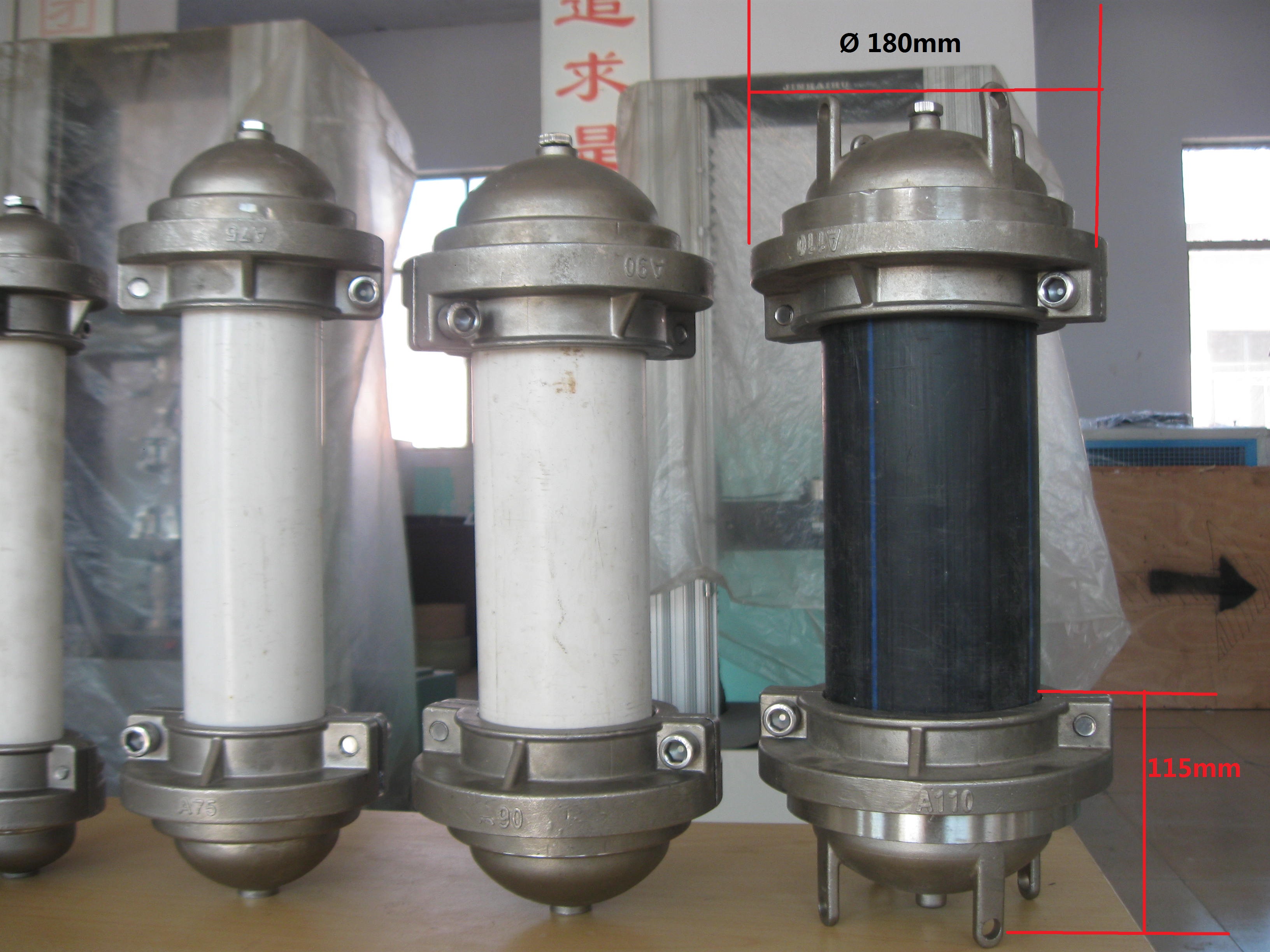

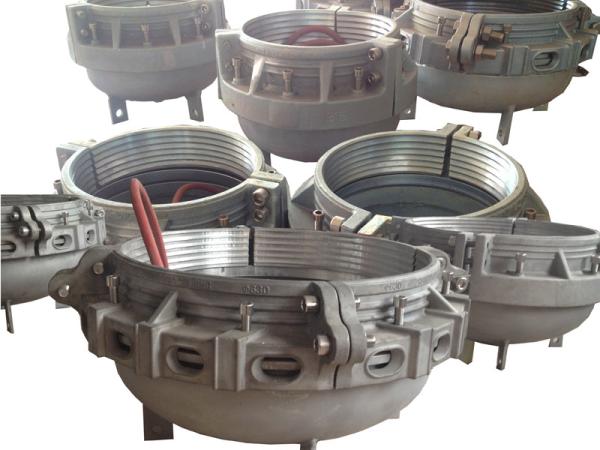

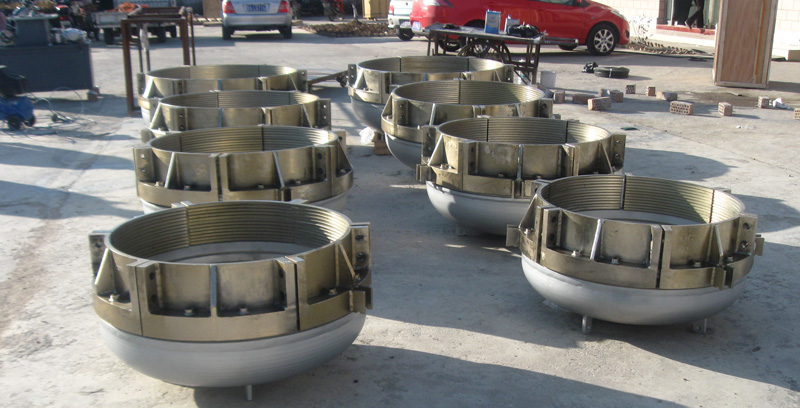

DN630mm SS or carbon steel end cover service for hydrostatic equipment

Outline:

DN630mm SS or carbon steel end cover service for hydrostatic equipment is designed and manufactured to seal piastic pipe such as PVC, PE, PP-R, ABS, composite pipe samples for hydrostatic test, bursting test, negative pressure test, etc.

Structural features:

The structure realizes the assembly method of clamping first and then sealing, and the success rate of clamping and sealing at one time reaches 100%.

Radial seal, suitable for a wide range of pipes (applicable to PE, PVC, PP-R, steel-lined composite pipes, etc.

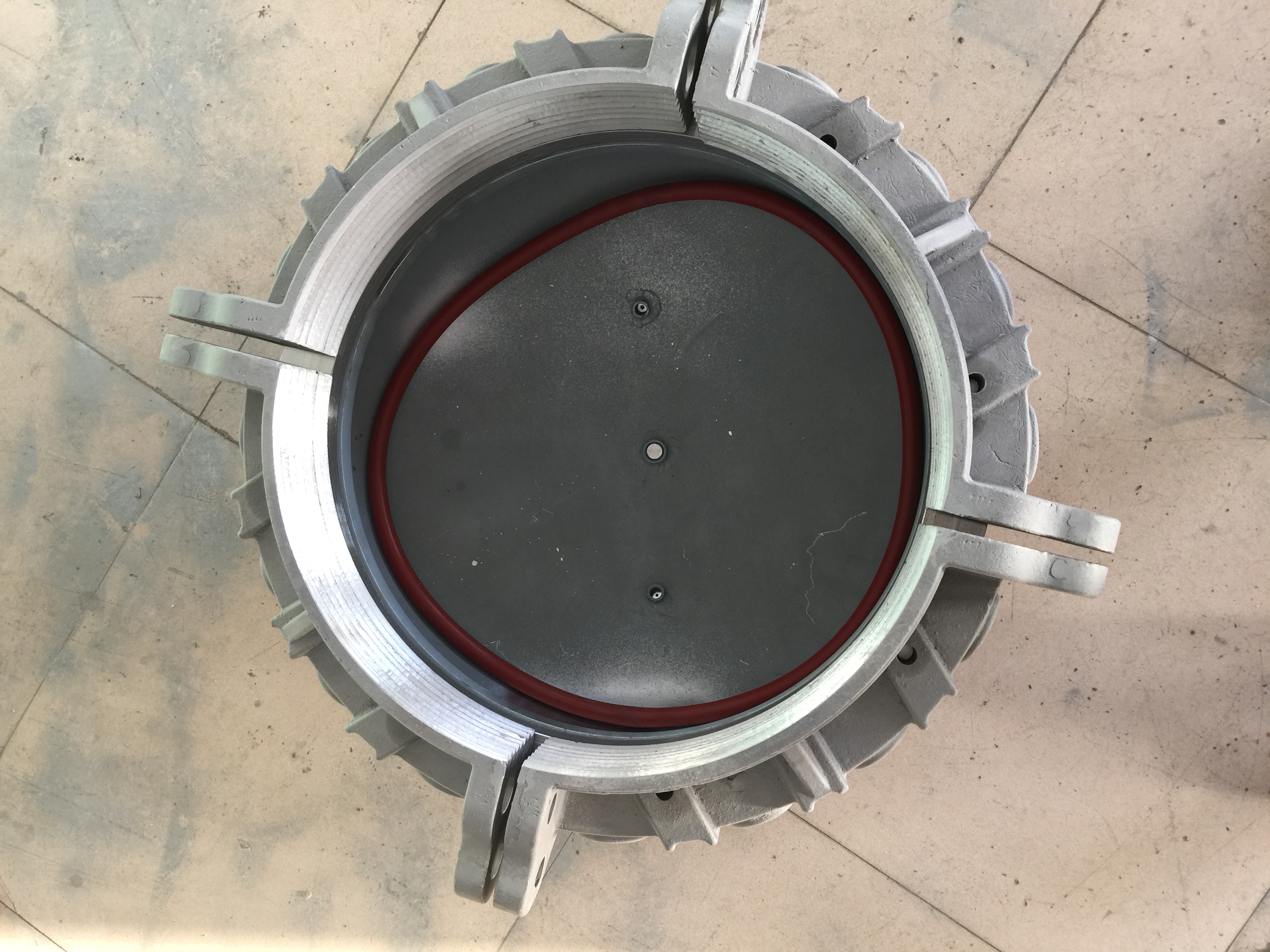

It consist of semi circular base, O-ring made of silicone rubber, follower ring , hold clamp, fastening bolts, compression bolts and vent valve.

Other models:

φ8, φ10, φ16, φ25, φ32, φ40, φ50, φ63, φ75, φ90, φ110, φ125, φ140, φ160, φ180, φ200, φ225, φ250, φ280, φ315, φ355, φ450, φ500, φ560, φ630, φ710, φ800, φ900, φ1000, φ1100, φ1200, φ1400, φ1600, φ1800, φ2000mm and British standard, Amercian standard, etc

Applicable Standards:

EN921, ISO1167, ASTM D 1598/1599, GB/T 6111, GB/T 15560, etc.

Technical data:

Product name
DN630mm SS or carbon steel end cover service for hydrostatic equipment
Color
Silvery white
Outline dimension φ850*450mm
Applicable pipe's diameter φ630~φ636mm
Max. Pressure 4MPA
The size of seal ring φ625*18mm
End cap connector M12*1.25, 1/4'', 1/8", 3/8"(customizable)
Type Type A
Packing
Standard export wooden
Certificate
ISO
Delivery time
7~15 days

Dn630mm Hydrostatic Test Plugs Ss Or Carbon Steel End Cover ServiceDn630mm Hydrostatic Test Plugs Ss Or Carbon Steel End Cover ServiceDn630mm Hydrostatic Test Plugs Ss Or Carbon Steel End Cover Service

Dn630mm Hydrostatic Test Plugs Ss Or Carbon Steel End Cover ServiceDn630mm Hydrostatic Test Plugs Ss Or Carbon Steel End Cover ServiceDn630mm Hydrostatic Test Plugs Ss Or Carbon Steel End Cover ServiceDn630mm Hydrostatic Test Plugs Ss Or Carbon Steel End Cover ServiceDn630mm Hydrostatic Test Plugs Ss Or Carbon Steel End Cover Service
