2000mm Falling Drop Impact Hammer Test Equipment Iso Approved

Name: 2000mm Falling Drop Impact Hammer Test Equipment Iso Approved
Brand: JINHAIHU
Price: 3300 USD

Quality 2000mm Falling Drop Impact Hammer Test Equipment Iso Approved wholesale

Brand Name : JINHAIHU

Model Number : XJL-300B

Certification : ISO9001

Place of Origin : BEIJING, CHINA

MOQ : 1 set

Price : 3300~4000 USD

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 20 sets per month

Delivery Time : 10~15 work days

Packaging Details : Standard export wooden cases

Product name : 2000mm Falling Drop Hammer Impact Testing Machine

Travel of Working Table : 0-630mm

Specimen Diameter : φ10~630mm

Hammer Diameter : D25, D90, R5, R10, R30, R50 can optional

Hammer Weight : 0.250~16.000kg 0.125kg/ increment

Max. Impact Height : 2000mm

Contact Now

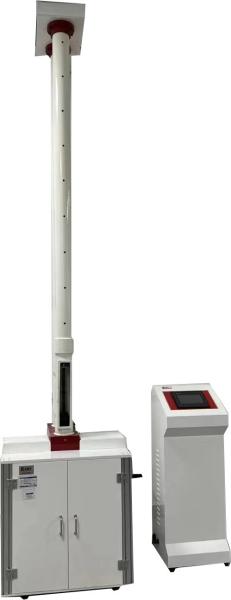

2000mm Falling Drop Hammer Impact Testing Machine

Equipment features:

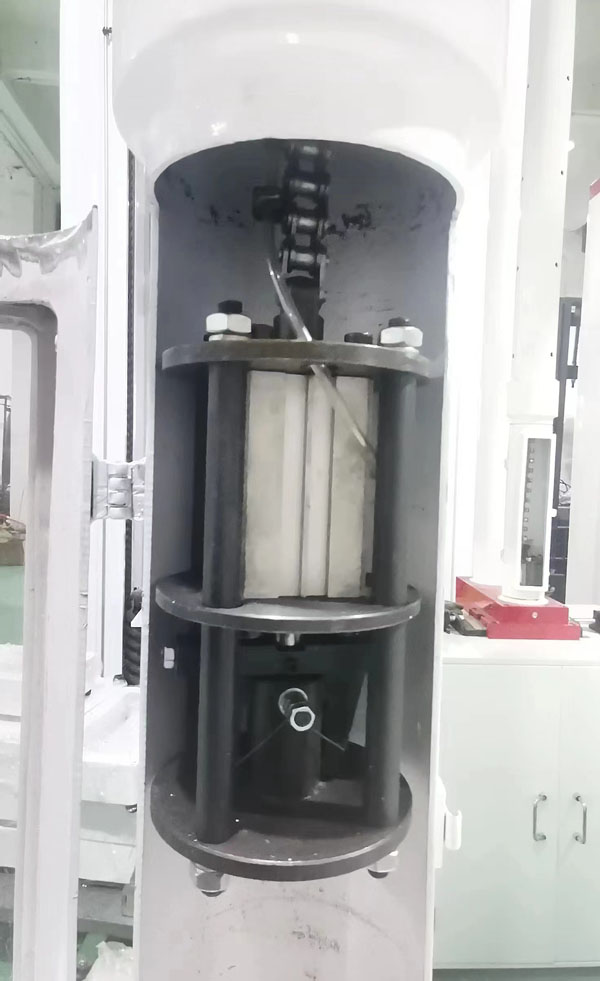

The test machine has to prevent the secondary impact function, AC servo system, hammer speed fast, good positioning accuracy, high test efficiency, small air resistance, can automatically measure the height, drop hammer height can be set arbitrarily, hammer height automatic calibration, impact hammer weight can be assembled by weight, anti-secondary impact device capture rate of 100%, V-shaped iron to adjust to adapt to different diameter of the sample, the hammer falling free movement, according to the requirements.

2000mm Falling Drop Impact Hammer Test Equipment Iso Approved

Compliance with standards:

ZB N72 026, GB/T14152, 14153,100021,13664,58361,18847,16800,8814 and GB/T 6112, ABN72026,

ISO 4422, ISO 3127, ASTM D2444

Technical parameter:

Model	XJL-300B
Max. impact energy	300J
Max.height	2000mm
Drop weight	0.25-16kg
Impact center and fixture center error	2mm
Hammer head	R5mm,R10mm,R30mm, can be customized
Selected to fit customer requirements	d25,d90
Tabel travel	0mm-630mm
Specifmen diameter	10mm~630mm

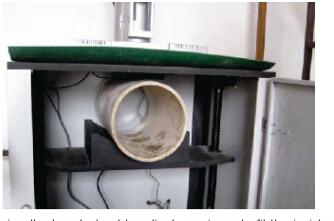

Pallet type	120°V-type with or without support,clamp flat pallet
Power	AC220V 50Hz

Configuration:

Host machine	one set
Electric control box	one set
Falling hammer	two set
Power cable	one
V-type iron	2 pieces (10mm-450mm)
Operation tool (wrench)	one group
